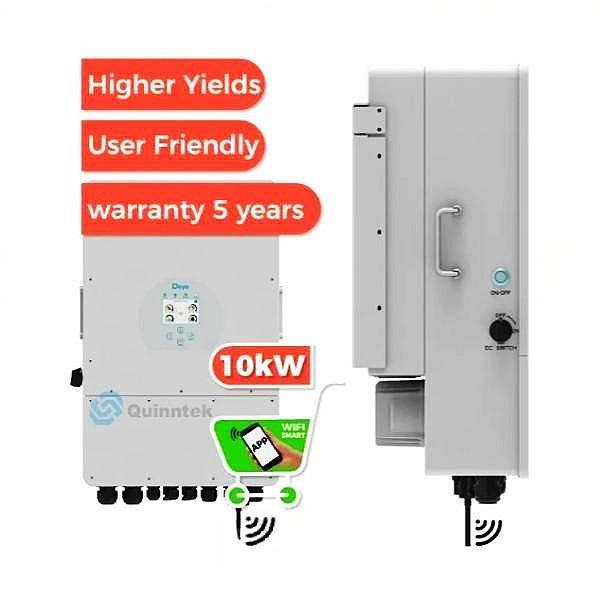

Deye 3 Phase 10kw High Voltage Hybrid Inverter SUN-10K-SG04LP3-EU Home Use

Name: Deye 3 Phase 10kw High Voltage Hybrid Inverter SUN10KSG04LP3EU Home Use
Brand: Deye
Price: 2014 USD

China Deye 3 Phase 10kw High Voltage Hybrid Inverter SUN-10K-SG04LP3-EU Home Use factory

Brand Name : Deye

Model Number : SUN-10K-SG04LP3-EU

Certification : CE

Place of Origin : China

MOQ : 1

Price : US$+2014-2214+piece

Payment Terms : T/T

Supply Ability : 10000 pieces month

Delivery Time : 10-15workday

Packaging Details : Each product is individually packaged in a carton or packaged according to your requirements.

Input Voltage : 40-60VDC

Output Voltage : 230/400Vac

Output Current : 15.2A

Output Frequency : 50/60Hz

Output Type : Three Phase

Size : 422W*279D*699.3H mm

Inverter Efficiency : 97.60%

Warranty : 5 Years

Weight : 33.6kg

Application : Solar Power System Home

Rated power : 10kw

Type : DC/AC Inverters

Contact Now

Deye solar hybrid inverter 3 Phase 10kw energy storage on grid hybrid solar inverter SUN-10K-SG04LP3-EU home use

Model	SUN-8K-SG04LP3-EU	SUN-10K-SG04LP3- EU	SUN-12K-SG04LP3- EU
Battery Input Data
Battery Type	Lead-acid or Lithium-ion
Battery Voltage Range(V)	40~60V
Max. Charging Current (A)	190A	210A	240A
Max. Discharging Current (A)	190A	210A	240A
Charging Curve	3 Stages / Equalization
External Temperature Sensor	Optiona
Charging Strategy for Li-lon Battery	Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W)	10400W	13000W	15600W
PV Input Voltage (V)	550V(160V~800V)
MPPT Range(V)	200V-650V
Start-up Voltage (V)	160V
PV Input Current (A)	13A+13A	26A+13A	26A+13A
No.of MPPT Trackers	2
No.of Strings Per MPPT Tracker	1+1	2+1	2+1
AC Output Data
Rated AC Output and UPS Power (W)	8000W	10000W	12000W
Max. AC Output Power (W)	8800W	11000W	13200W
Peak Power(off grid)	2 times of rated power, 10 S
AC Output Rated Current (A)	12A	15A	18A
Max. AC Current (A)	18A	23A	27A
Max. Continuous AC Passthrough (A	50A	50A	50A
Output Frequency and Voltage	50 /60Hz; 400Vac (three phase)
Grid Type	Three Phase
Current Harmonic Distortion	THD<3%(Linear load<1.5%)
Efficiency
Max. Efficiency	97.60%
Euro Efficiency	97.00%
MPPT Efficiency	99.90%
Protection
PV Input Lightning Protection	Integrated
Anti-islanding Protection	Integrated
PV String Input Reverse Polarity Protection	Integrated
Insulation Resistor Detection	Integrated
Residual Current Monitoring Unit	Integrated
Output Over Current Protection	Integrated
Output Shorted Protection	Integrated
Output Over Voltage Protection	Integrated
Surge protection	DC Type II/AC Type Il
Certififications and Standards
Grid Regulation	EC61727,IEC62116,IEC60068,IEC61683,NRS097-2-1
Safety EMC/Standarc	IEC62109-1/-2,IEC61000-6-1,IEC61000-6-3,IEC61000-3-11,IEC61000- 3-12
General Data
Operating Temperature Range (℃)	25~60℃,>45°C Derating
Cooling	Smart cooling
Noise (dB)	<30 dB
Communication with BMS	RS485; CAN
Weight (kg)	36.8
Size (mm)	422W×658H×281D
Protection Degree	IP65
Installation Style	Wall-mounted
Warranty	5 years

Deye 3 Phase 10kw High Voltage Hybrid Inverter SUN-10K-SG04LP3-EU Home Use
